After fitting wheels onto an axle in a wheel mount press, measurements need to be made to confirm the wheelset is within specification before being re-introduced to the system.

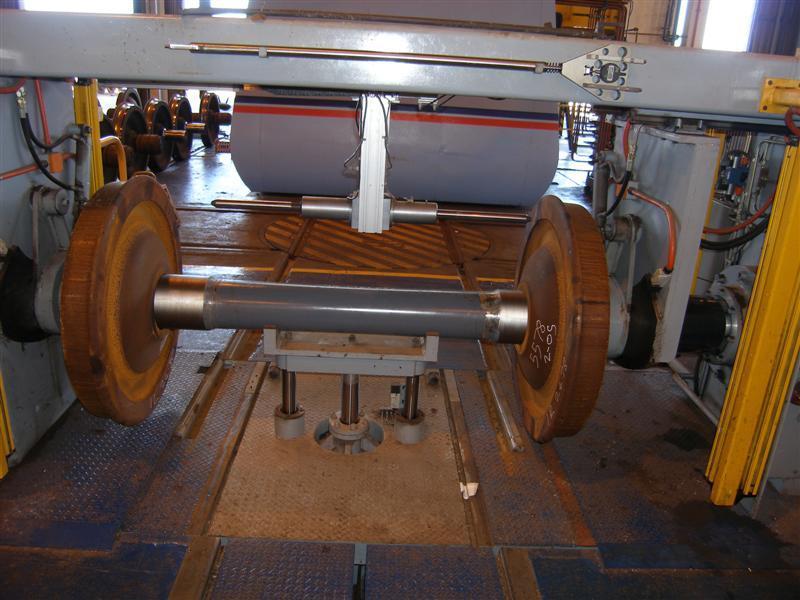

The press installation can incorporate an axle checking stand, which measures the wheelset against datum on the axle in-line with a reference drawing.

The axle checking stand can be part of a press installation or it can be a stand-alone device.

Atlas Rail has numerous gauging systems that can be provided in support of production requirements. The two main styles of gauges include the Wheel Diameter Gauge and the Back-to-Back gauge.

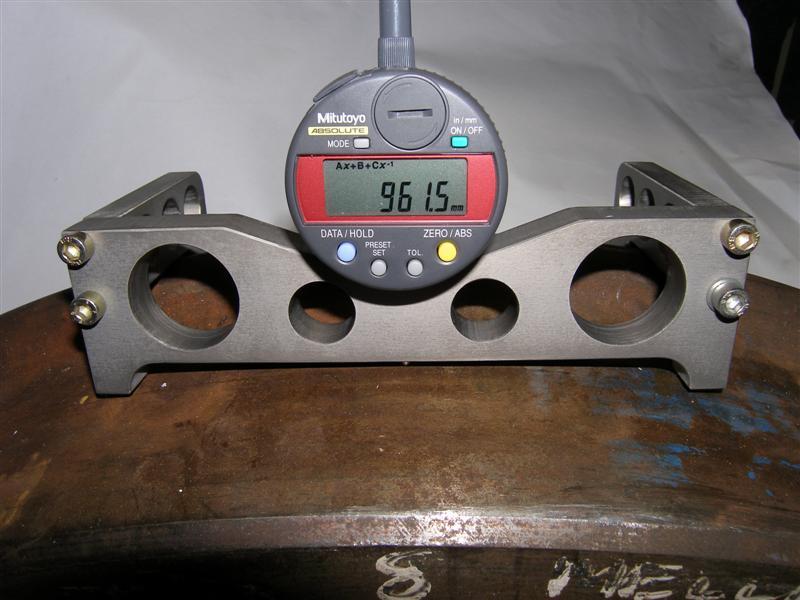

The Wheel Diameter Gauge enables the operator to conduct a very simple test to determine the diameter of the wheel to determine if the wheel is within specified limits in support of machining and processing.

Atlas Rail has numerous other gauging systems that can be accommodated on customer request.

Atlas Rail has numerous gauging systems that can be provided in support of production requirements. The two main styles of gauges include the Wheel Diameter Gauge and the Back-to-Back Gauge

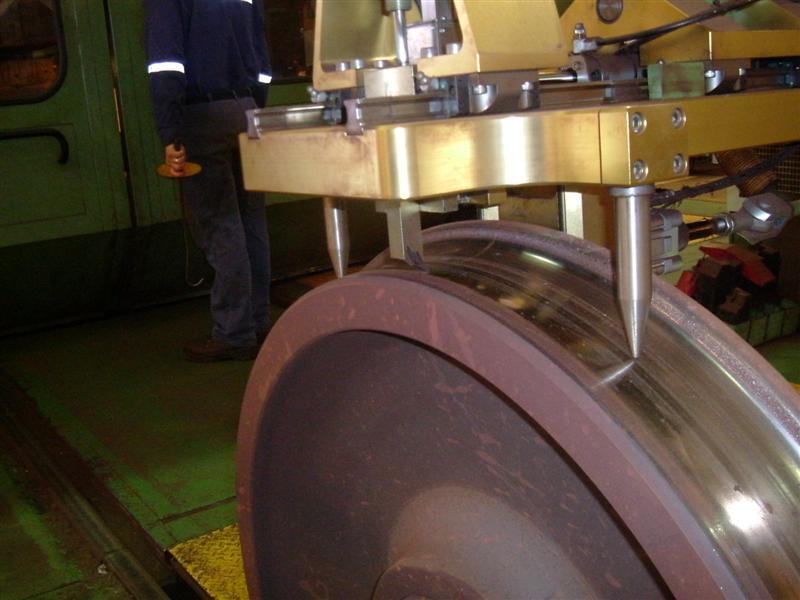

The Back-to-Back Gauge enables the operator to conduct a quick validation of the back to back measurements for a given wheel set enabling the operator to process the wheel set in accordance with the results of the back to back gauge.

Atlas Rail has numerous other gauging systems that can be accommodated on customer request.
